Intelligent Lighting System
Summary
GL-BUS intelligent lighting control system is an intelligent control system independently developed and manufactured by Gaifu Company according to the international KNX technical standard. KNX is an open international standard in the field of residential and building control. The concept of KNX/EB system originated in the 1990s and has now become the international standard SOEC14543-3. It formally became the national standard of HBES GB/Z20965-2007 in 2007. The system connects all components through a bus. Each component can work independently, and centralized monitoring and control can be carried out by a central control computer. The components programmed by computer can not only independently complete such tasks as switch, control and monitoring, but also can be combined according to different requirements, so as to achieve the effect that the number of components is not increased but the function can be flexibly changed. Gaifu's GL-BUS system is the best in this kind of products.

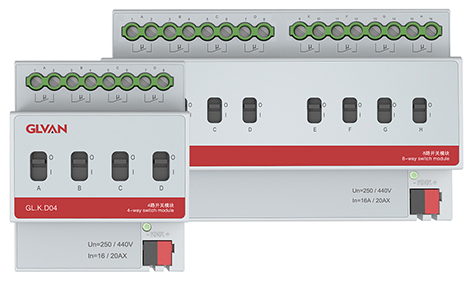

Switch module
Switch actuator series products are analog installation equipment, which is installed on 35mm Standard Guide rail. There are four, eight and twelve outputs. The equipment does not need additional power supply. The equipment can switch four to twelve electrical AC loads. Each output can be independently controlled by the KNX system and can be turned on or off manually.

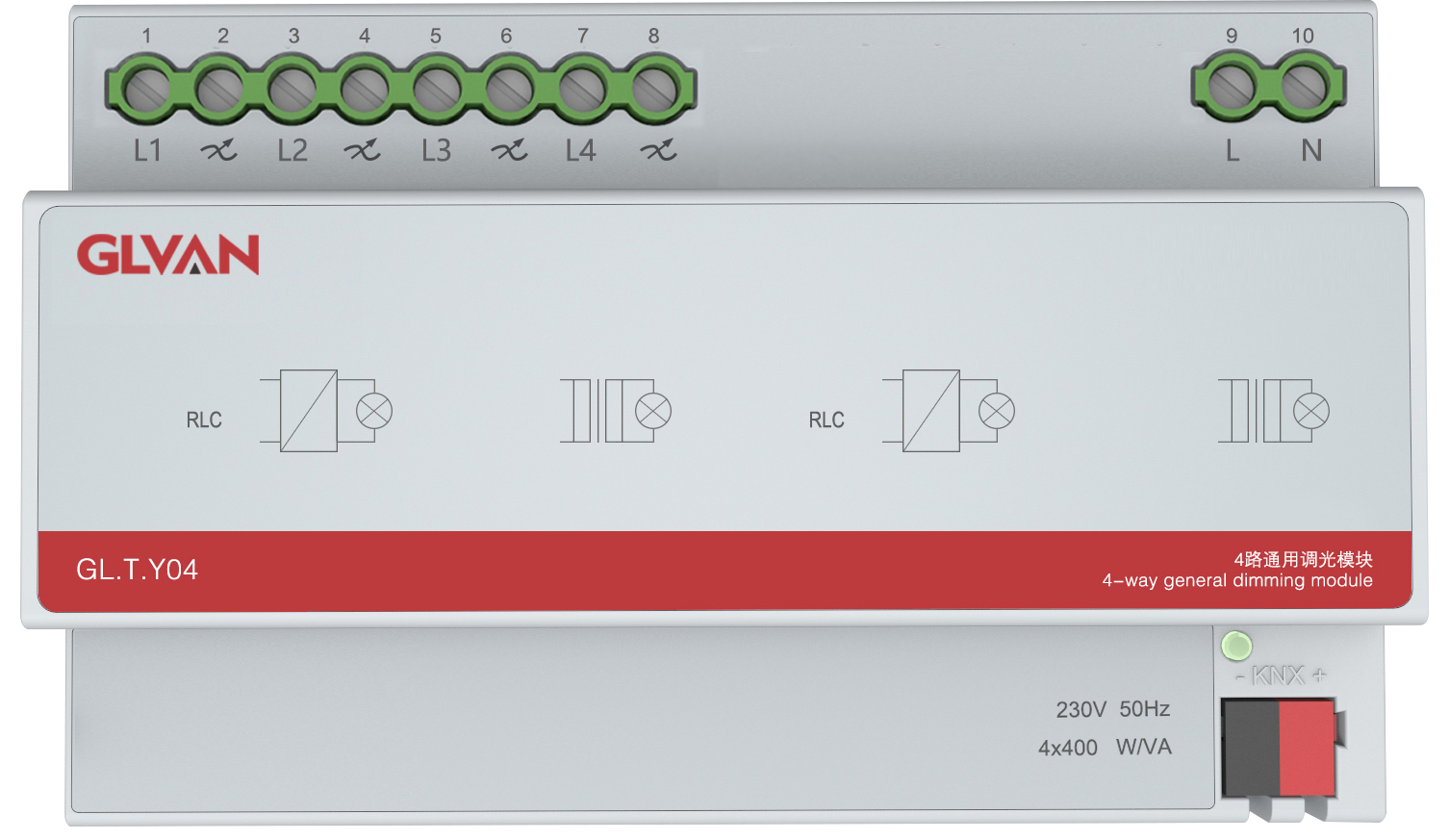

General dimming GL.T.Y04
The product of thyristor dimming actuator is modular installation equipment, which is installed on 35mm Standard Guide rail. Four outputs are dimmed by phase modulation. Each channel can be dimmed and switched independently. The equipment needs 220AV power supply.
Dry Contact GL.DC.04
The general interface module is mainly controlled by connecting ordinary buttons or reset switches and other dry contact signals. Open and close, dimming, curtain and scene control can be defined freely. The longest connecting wire is 10 meters. Installation mode is concealed.

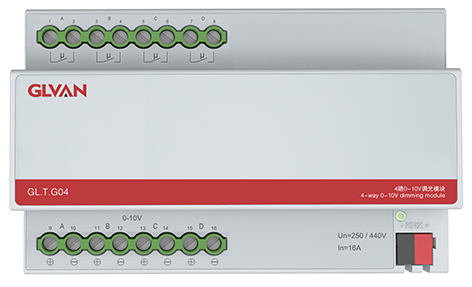

0-10V dimming module GL.T.G04
KNXO-10V dimming actuator products are modular installation equipment, installed on 35mm standard guide. Four output channels are dimmed by standard DC 0-10V control interface. The device is equipped with bypass switch relays, each channel can be independently dimmed and switched. The equipment needs 24VDC power supply.
Curtain Module GL.C.L02/04
Curtain controller can control AC motor load without additional power supply. AC motors need to operate in both clockwise and counterclockwise modes. Curtain controller is used to switch 4 independent AC motor loads. The maximum continuous load current output from each control contact is 6A (AC).
Infrared Learning Module GL.IR.04
The KNX infrared module is a modular installation device, which is mounted on the standard 35mm guideway. The device has one infrared learning port and four infrared emitters. The module can control and learn infrared codes of infrared devices through ETS software, and send message commands to infrared modules through other KNX devices to transmit corresponding infrared signals to control the corresponding infrared devices. The device has four infrared transmission channels, each channel can learn and store up to 100 infrared codes with different control functions. The equipment needs 24VDC power supply.

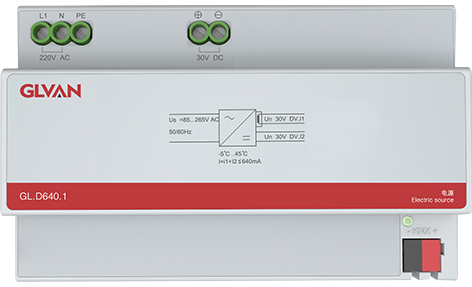

Power module GL.D640.1
KNX power supply is a device that provides power for KNX system. It connects to the bus through the KNX terminal. With reset function, the bus system can be reset. During this period, the bus power is cut off, and the components connected to the bus will be reset to the default state.
232-485 Gateway Module GL.W.G.232-485
KNX232/485 gateway is a device that communicates with KNX bus in two directions through 232/485 serial port. KNX 1 bit, 4 bit can be controlled. 1 byte, 2 byte, 4 byte and other types of data, while real-time monitoring and feedback of the operation status of each device. The gateway has one 232/485 interface and one standard KNX interface.
Touch vibration panel GL. SK. EP
KNX touch button panel is an intelligent touch panel made of glass. It has functions of switch, dimming, curtain, calling and storing scenes. It can switch, dimming and scene control. It has functions of scene, logic, sequence, delay, corridor, preset and flicker. The button has LED status indication. Standard 86 bottom box installation.
Key panel GLM6
GL series KNX keyboard panel is a metal smart panel with functions of switch, dimming, curtain, calling and storing scenes. It has the following models: GLM1/GLM3/GLM4/GLM5/GLM6, which can be installed in conjunction with the same series of panels.
Knob Temperature Control Panel GL.T.EP
GL series KNX temperature control panel is a metal knob temperature control panel, which is suitable for air conditioning, floor heating, fresh air and other temperature control equipment. There are several models as follows: GL.T.EP1/GL.T.EP2/GL.T.EP3, which can be installed in conjunction with the same series of panels.
KNX Coupler GL.CP.1.1
The coupler can provide a data connection between two independent EIB buses, and also act as an electrical isolation between the buses, so that a bus can be operated locally.
